Proxying AD Protected Users

PAM Core Proxy
,
1

Has anyone gotten managing and using AD credentials for “protected users” yet? (Protected Users Security Group in Windows Server | Microsoft Learn)

The protected users group in itself is a great feature of AD and drastically reduces attack surface for Privileged Accounts. It forces Kerberos Auth and disables many legacy protocols.

2

Hi,

From version 4.0 and above, using proxy v2 (which is on beta version), its possible to start RDP sessions with users that belong to the protected group.

It works using kerberos authentication and requires a manual configuration

  1. Create the config file in the Segura PAM:
    Change the default realms and all mentions of the “WINRM.SEGI9.KERBEROS” domain to your own domain.

vim /etc/krb5.conf


[libdefaults]
        default_realm = WINRM.SEGI9.KERBEROS

        kdc_timesync = 1
        ccache_type = 4
        forwardable = true
        proxiable = true

        fcc-mit-ticketflags = true

[realms]
        WINRM.SEGI9.KERBEROS = {
                kdc = winrm.segi9.kerberos
                admin_server = winrm.segi9.kerberos
        }
  1. Give correct permissions to file:

chmod 644 /etc/krb5.conf

  1. Activate proxy 2 (beta version, activate at your own risk)

orbit proxy shift v2

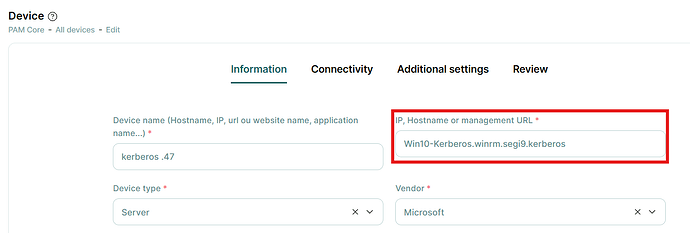

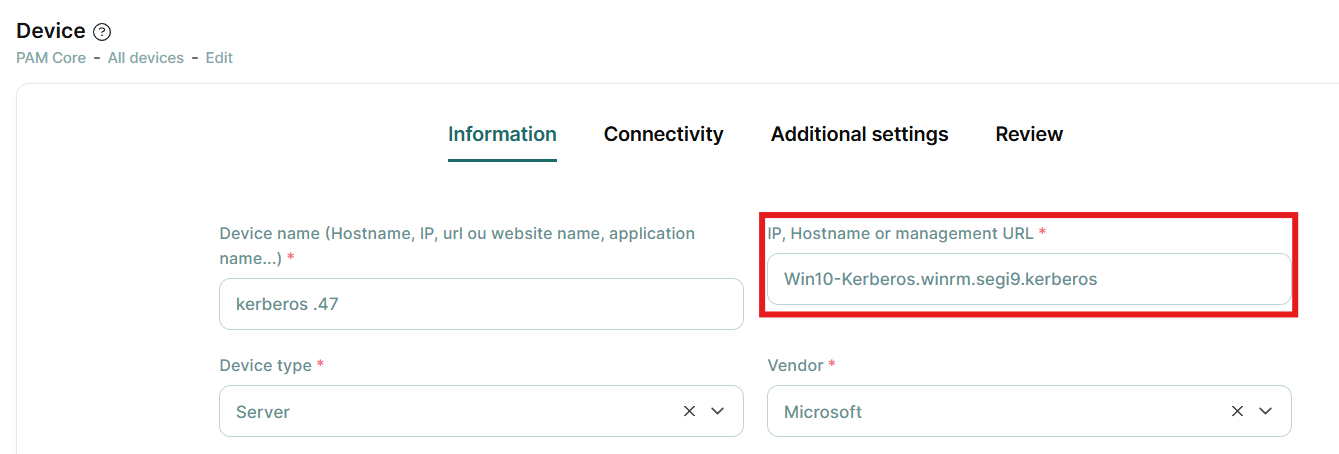

  1. Finally, when registering the device that will be used for the Kerberos connection in the vault, we must enter the machine’s hostname in the “IP, Hostname or Management URL” field instead of the numeric IP address.
    image1339×454 26 KB
1 Like
3

Great to read that this should work (in beta :slightly_smiling_face:), sadly I never got the v2 proxy to work… Is there any guideline for setting it up?

Never got any further than this error after shifting to v2:

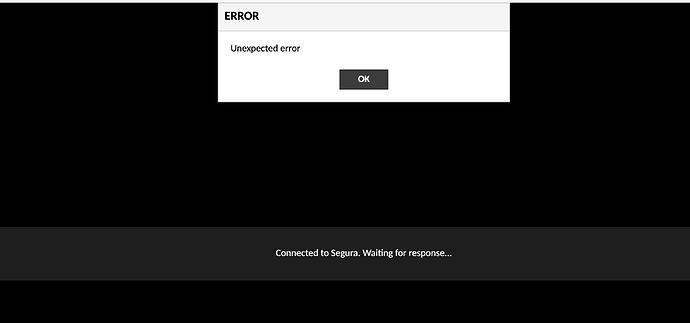

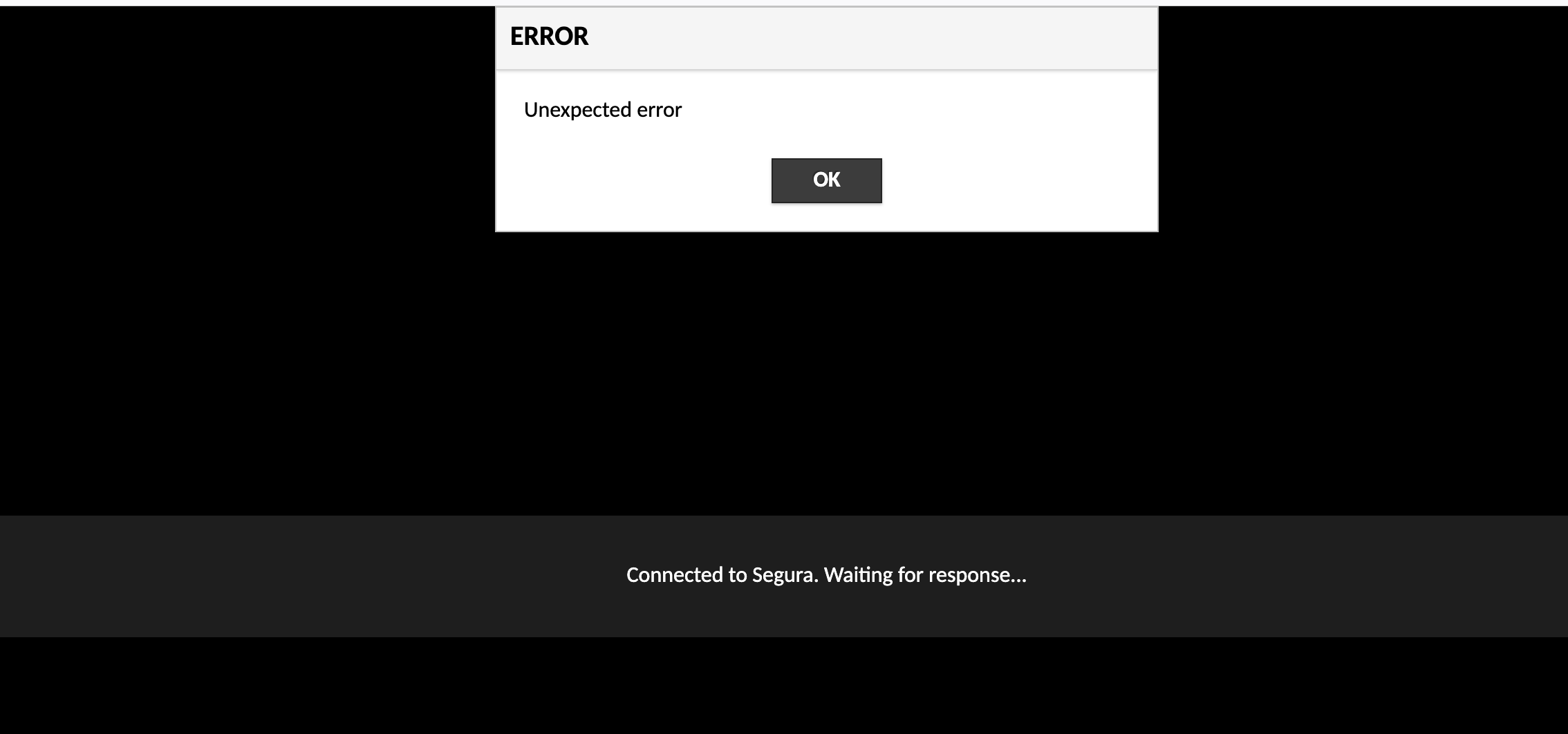

image2268×1062 66.6 KB

Dec  9 18:53:31 segura-lab ruler-api-gateway: Loading settings file /etc/senhasegura/proxy/api/senhasegura-gateway.conf.
Dec  9 18:53:31 segura-lab senhasegura[1873639]: LOGGER|2025-12-09T19:53:31+02:00|Coss\Api\Gateway\Plugin|3|/usr/local/senhasegura/public_html/orbit/api/index.php|SQLSTATE[42S02]: Base table or view not found: 1146 Table 'senhasegura.coss|6938621b44261||12|Proxy Gateway [segura-lab]|34f3978ea39ed9a4623c174c6b7e3a7bfb967164fc6ee30d939d62ec0a3846d4|/orbit/api/proxy/auth/login
Dec  9 18:53:31 segura-lab docker[73220]: 127.0.0.1 - 127.0.0.1 - - [09/Dec/2025:17:53:31 +0000] "POST /api/proxy/auth/login HTTP/1.1" 500 266 "-" "proxy-web-ng"
Dec  9 18:53:43 segura-lab senhasegura[1873638]: LOGGER|2025-12-09T19:53:43+02:00|Coss\Api\Gateway\Plugin|3|/usr/local/senhasegura/public_html/orbit/api/index.php|SQLSTATE[42S22]: Column not found: 1054 Unknown column 'token_uuid' in 'WHE|693862277bf6b||12|Proxy Gateway [segura-lab]|62e2c81ac8c77e8f29f0ec53ccbf3f7c2a9ac76de7383f3a45758c464260b50b|/orbit/api/proxy/session/ping
Dec  9 18:53:43 segura-lab docker[73220]: 127.0.0.1 - 127.0.0.1 - - [09/Dec/2025:17:53:43 +0000] "GET /api/proxy/session/ping?user_addr=172.16.20.50 HTTP/1.1" 500 266 "-" "proxy-web-ng"
4

Your logs point to a weird behavior.

Try updating to the latest 4.0 version.

Update procedure for a standalone thats already on version 4.0:
Take snapshots
orbit repository configure stable
apt update
orbit apt install orbit-cli
orbit update --force

After that:
orbit proxy shift v2
orbit proxy api-token

Then try to start sessions.

5

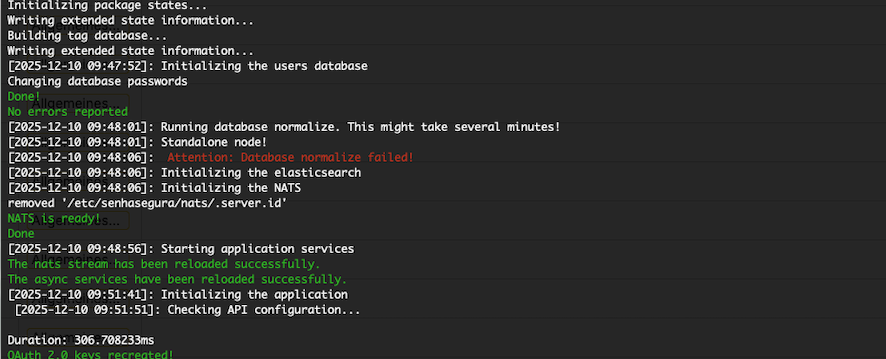

The update sadly didn’t seem to be of use. V2 proxy still fails with the same error, the logs could indicate some problems with database consistency in my opinion… While installing the update the database normalization also seemed to fail, I don’t know how common this is. Maybe theres an easy fix?

image886×359 111 KB

As soon as I find some time, I will try with a fresh install (for reproducibility) and update this post.

6

Hi,

Seems like your lab environment has database issues, you might need to redeploy your instance.

On a production instance you could have the support team take a look but if this is just your lab a new deployment must definitely fix this.

Database normalize and tables missing usually mean somtehing went really wrong and it needs analysis, which is mostly not worth it for a lab…
